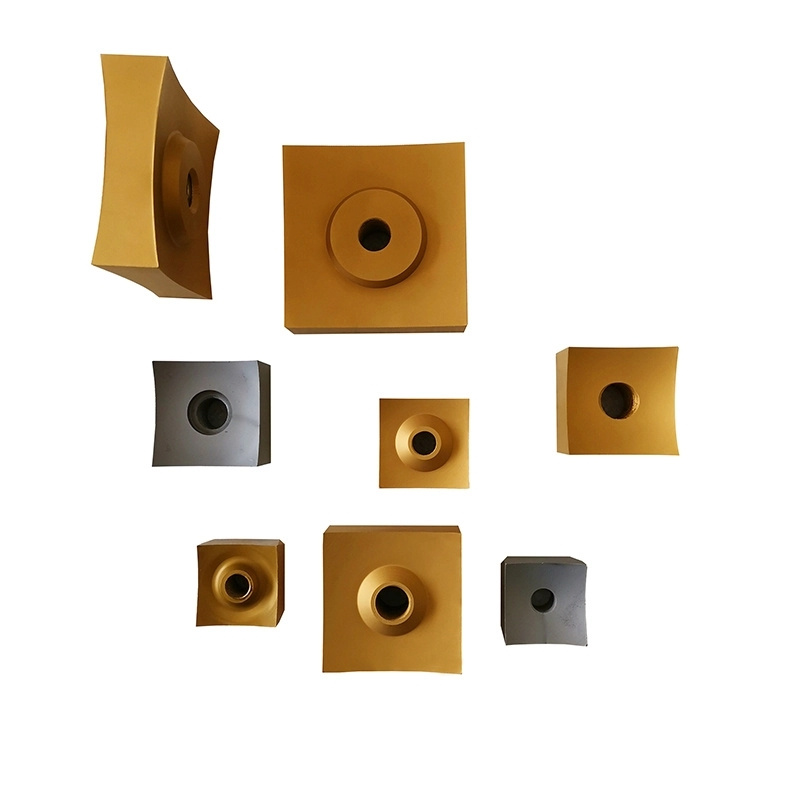

Single Shaft Crown Knife commonly referred to in the industry as a small square knife or moving knife, is the most core wear-and-tear part of a single-shaft shredder. It is fixed to the rotor (main shaft) knife holder with bolts and works in conjunction with the fixed knife on the machine casing to break materials through 'shearing' and 'tearing' actions.
Payment :
LC/DP/TTShipping Port :
ShanghaiLead Time :
7-10 DaysBlade Material :
SKD11, D2, DC53, Tct InsertApplication :
Single Shredder RecyclingMerits :
High Wear Resistance

Description
Single shaft crown knife (also called a rotor knife or shredder blade) is a key cutting component used in single shaft shredders.
Shred object
Plastics, rubber, wood, textiles, and other solid waste into smaller pieces.
Blade material and hardness
Material is SKD11,D2, DC53, LD and etc.Hardness is 52-62 HRC accordingly.Dimension tolerance is +/-0.05mm.
| Size of Crown Knife | Customzied Type of Fixed blade | Material | |
| 34*34*20 | 35*35*23 | 600 single shaft shredder | 55SiCr, SKD11, 6CrW2Si, D2, H12, A8, DC53,TCT insert |
| 40*40*20 | 40*40*25 | 800 single shaft shredder | |
| 45*45*30 | 50*50*25 | 1000 single shaft shredder | |
| 60*60*28 | 60*60*30 | 1200 single shaft shredder | |
| 80*80*35 | Customized | 1400 single shaft shredder | |
