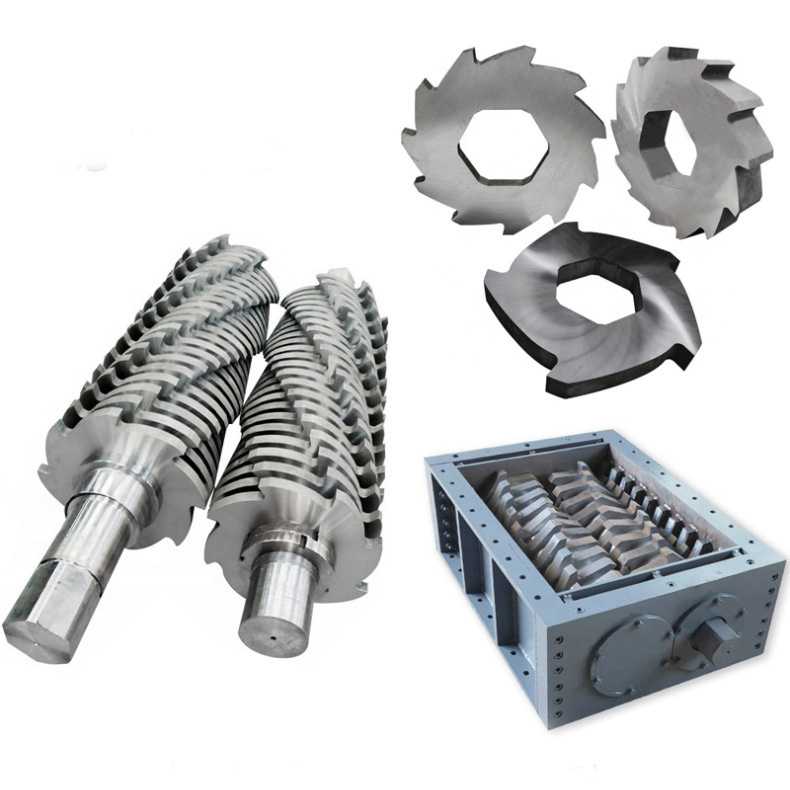

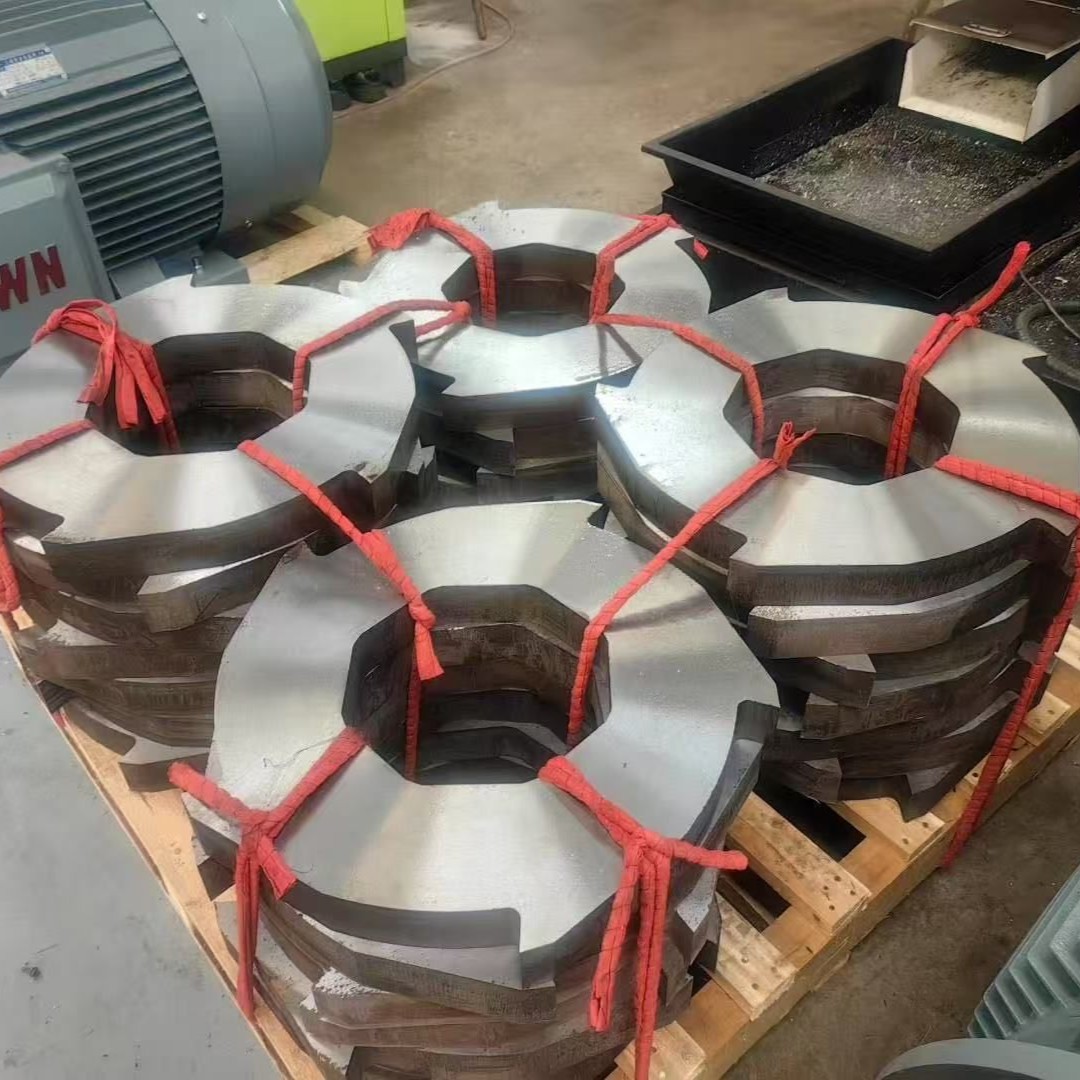

The double shaft shredder blade is a key component designed specifically for double shaft shredders, used for efficient crushing and shredding of various waste materials. The double shaft shredder blades are usually disc-shaped with teeth, installed on two parallel shafts, and rotate in opposite directions to form a staggered interlocking shear structure.
Payment :
LC/DP/TTShipping Port :
ShanghaiLead Time :
7-10 Days
Introduction
Double shaft shredder blade is a key component designed specifically for double shaft shredders, used for efficient crushing and shredding of various waste materials.
Shred object
Plastic, paper, wood, leather, tire rubber, steel, construction waste etc.
Blade material and hardness
The materials are generally 55SiCr, 9CrSi, 6CrW2Si, A8, H12, H13, SKD11, Handex and etc.The hardness is range of HRC50-65.Dimension tolerance is OD:±0.1, ID:H7-9, Thickness is ±0.0005.
| Blade Diameter | Inner Hexagon | Blade Thickness | Outer Diameter of Shim | Thickness of Shim |
| Ф150 | 70 | 12 | 110 | 12.2 |
| Ф180 | 80 | 20 | 130 | 20.2 |
| Ф200 | 90 | 10 | 150 | 10.2 |
| Ф200 | 90 | 15 | 150 | 15.2 |
| Ф350 | 180 | 30 | 250 | 30.3 |
| Ф400 | 200 | 40 | 300 | 40.3 |
| Ф500 | 250 | 50 | 350 | 50.3 |
| Ф600 | 300 | 60 | 400 | 60.3 |
