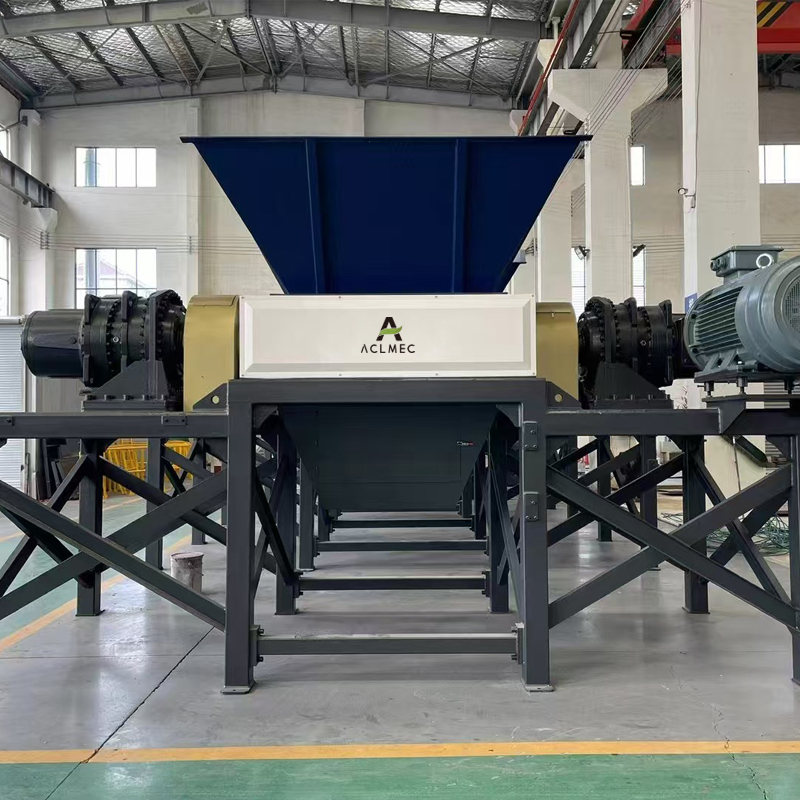

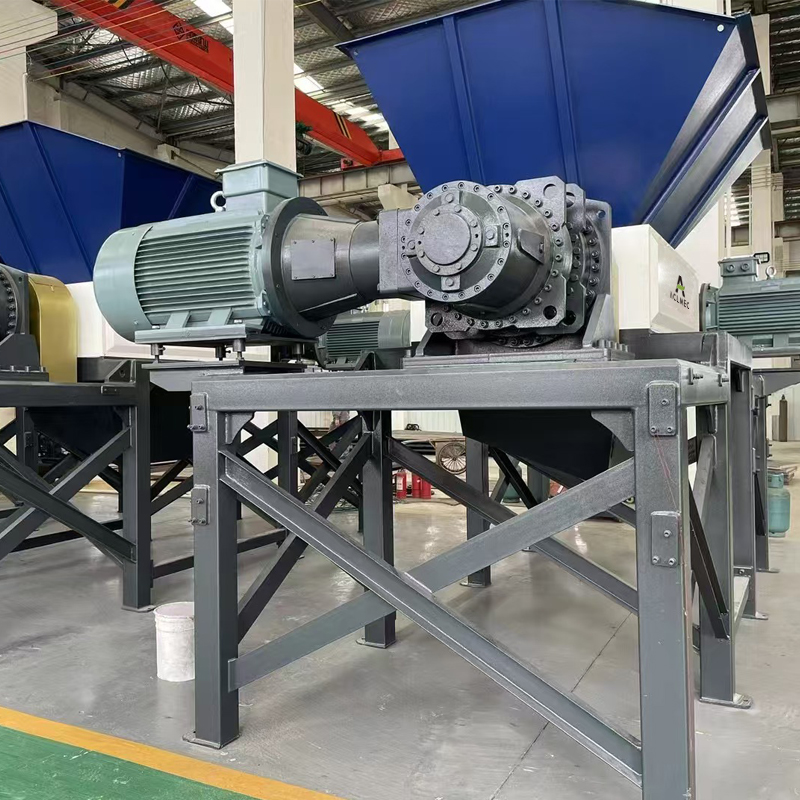

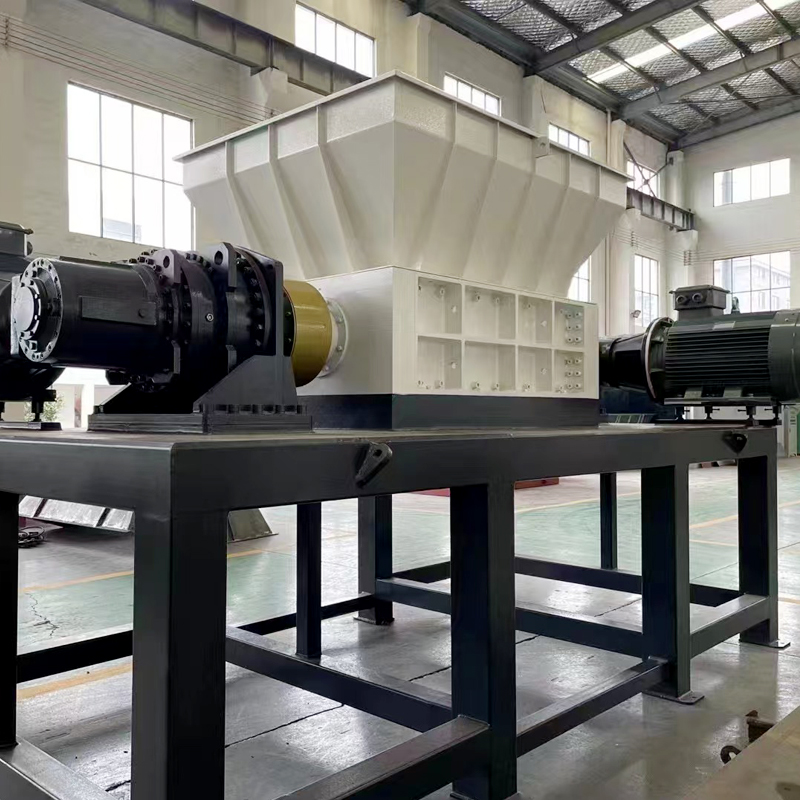

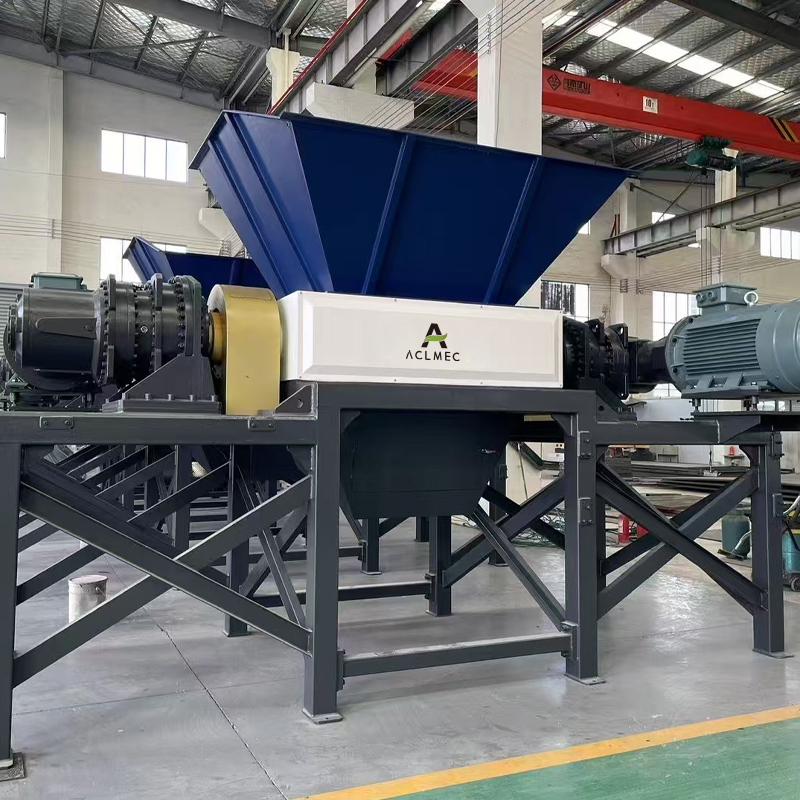

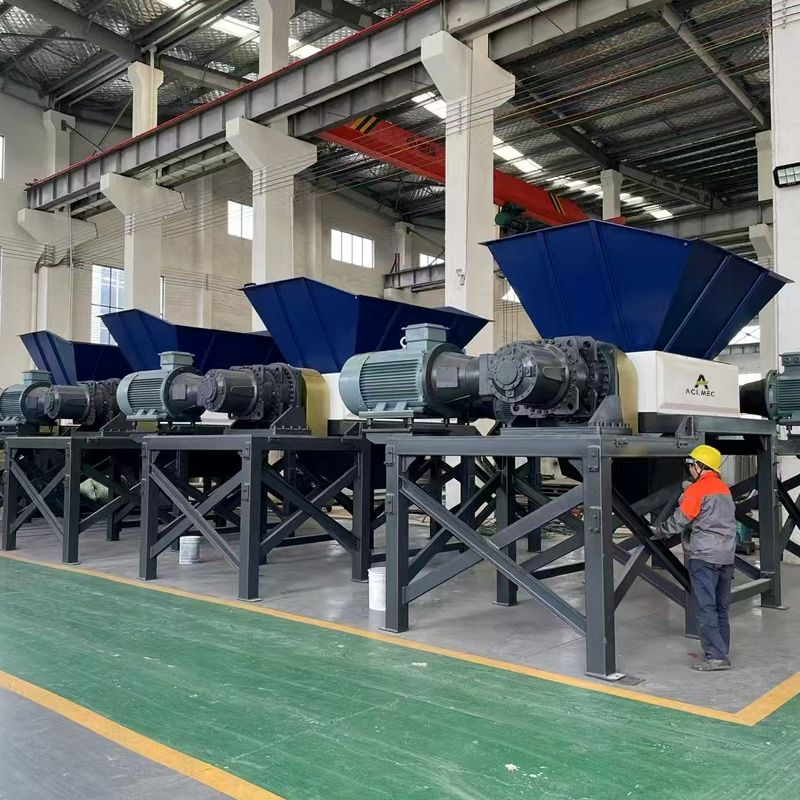

A Two Shaft Shredder for Paper Cardboard（1200Model）has two counter-rotating shafts work together, ensuring efficient shearing and minimizing the risk of jamming.Equipped with robust gearboxes, motors, and wear-resistant blades to handle tough materials.This twin shaft shredder can shred paper cardboard at a rate of 1100-1300kg per hour.
Payment :
LC/DP/TTPackaging Details :
Wooden CaseShipping Port :
ShanghaiLead Time :
10 DaysControl System :

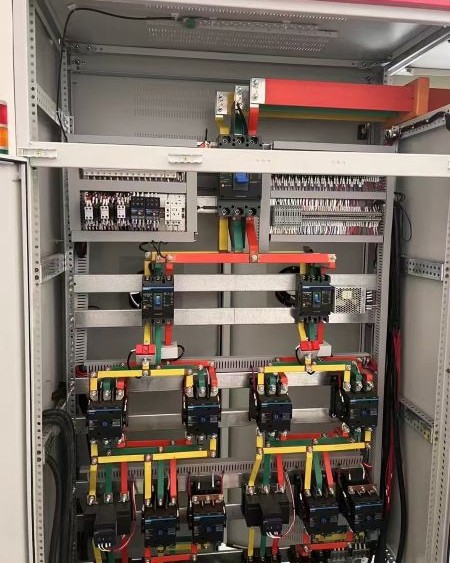

PLC ControlBlade Material :
SKD11,55sicr, 9crsi, 6crw2sFunction :
Multifunctional Waste Material Shredder
Advantage
The advantages of large double shaft shredders are built for higher capacity, larger feed openings, and stronger torque output, making them suitable for the most demanding applications.
• High Capacity
Handles bulky and oversized waste without the need for pre-cutting.
• Strong Cutting Power
Equipped with low-speed, high-torque motors and heavy-duty blades.
• Durability and Reliability
Designed with robust gearboxes, shafts, and wear-resistant cutters for long service life.

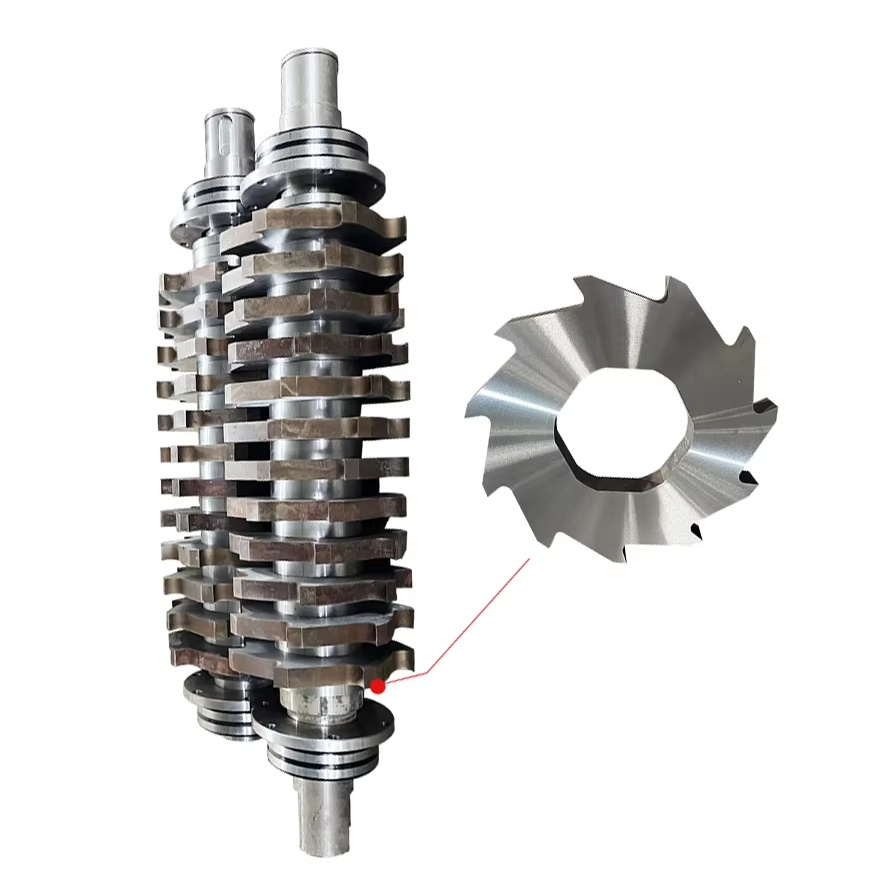

The blades have a simple structure for easy maintenance, fit small-space scenarios, target soft materials, cost less, and can be customized based on material properties to optimize crushing results.

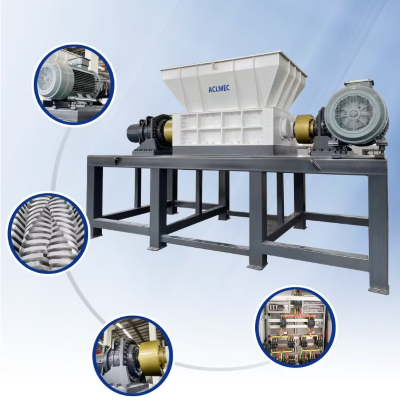

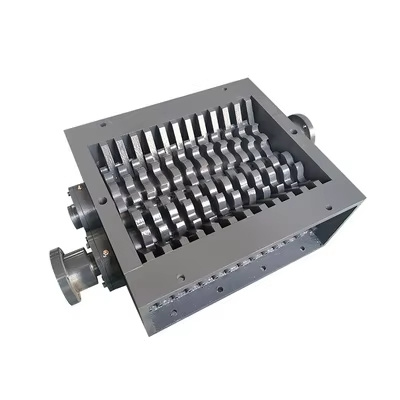

With counter-rotating dual shafts meshing, it boasts high efficiency, wide adaptability and stable operation. Its low-speed, high-torque design saves energy, and the modular structure facilitates maintenance.
The motor has strong adaptability, stable operation, reasonable energy consumption and minimal failure impact, balancing shaft force against overload, saving energy at low speeds and reducing production interruption if one fails.
The power unit requires no dual-shaft synchronization, featuring low cost, easy maintenance, and small space occupation. It can directly adjust the load with reasonable energy consumption
Product Parameters
These features ensure excellent performance, which is reflected in the following technical specifications:
| Model | Blade Size(mm) | Quantity(pcs) | Power(kw) | Reducer | Speed(r/min) | dimension(mm) |
| 800 | Φ350*20 | 32 | 22*2 | JZQ650*2 | 12-30 | 3700*1540*2200 |
| 800 | Φ400*40 | 20 | 30*2 | JZQ650*2 | 12-30 | 3700*1540*2200 |
| 1000 | Φ400*30 | 33 | 30*2 | JZQ650*2 | 7-20 | 3860*1550*2350 |
| 1000 | Φ400*40 | 25 | 37*2 | ZSY315 | 7-20 | 4000*1600*2350 |
| 1000 | Φ400*50 | 20 | 45*2 | JQZ850 | 7-20 | 4200*1650*2350 |
| 1200 | Φ400*40 | 30 | 45*2 | ZSY355 | 7-20 | 4600*1900*2450 |
| 1200 | Φ400*50 | 24 | 55*2 | ZSY400 | 7-20 | 4600*1900*2450 |
| 1400 | Φ500*40 | 35 | 55*2 | ZSY400 | 7-18 | 5200*2100*2600 |
| 1400 | Φ550*60 | 23 | 75*2 | ZSY450 | 7-18 | 5300*2200*2600 |
| 1600 | Φ500*40 | 40 | 75*2 | ZSY450 | 7-15 | 5500*2200*2750 |
| 1600 | Φ600*60 | 26 | 90*2 | ZSY500 | 7-15 | 5800*2300*2800 |
| 1800 | Φ650*50 | 36 | 90*2 | ZSY500 | 7-14 | 6000*2400*2950 |
| 1800 | Φ700*60 | 30 | 110*2 | ZSY560 | 7-14 | 6000*2500*3100 |
Application
Large double shaft shredders are ideal for heavy-duty, large-scale recycling and waste reduction, offering strength, durability, and efficiency.
