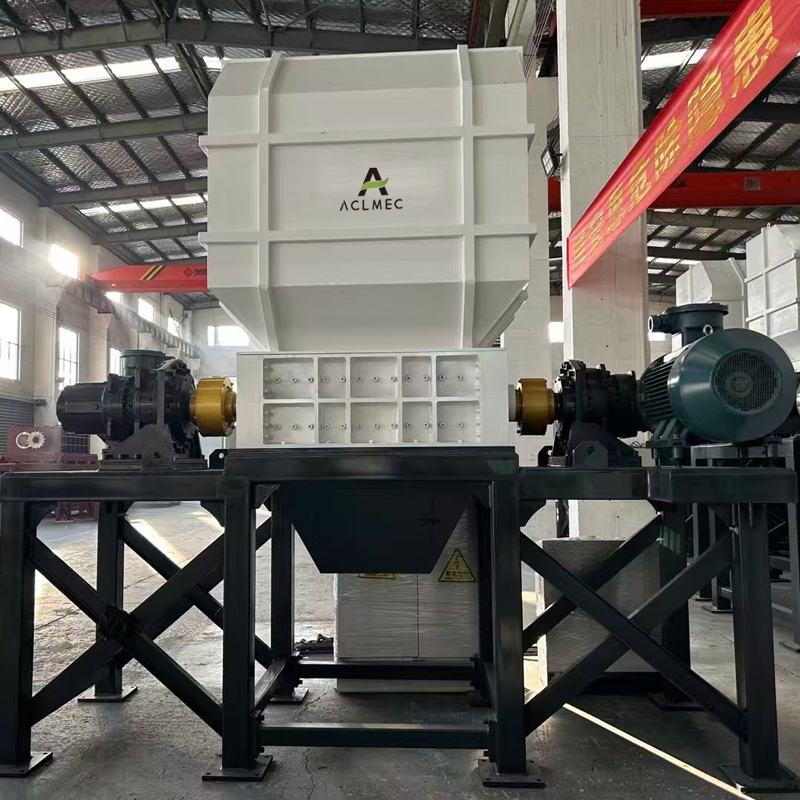

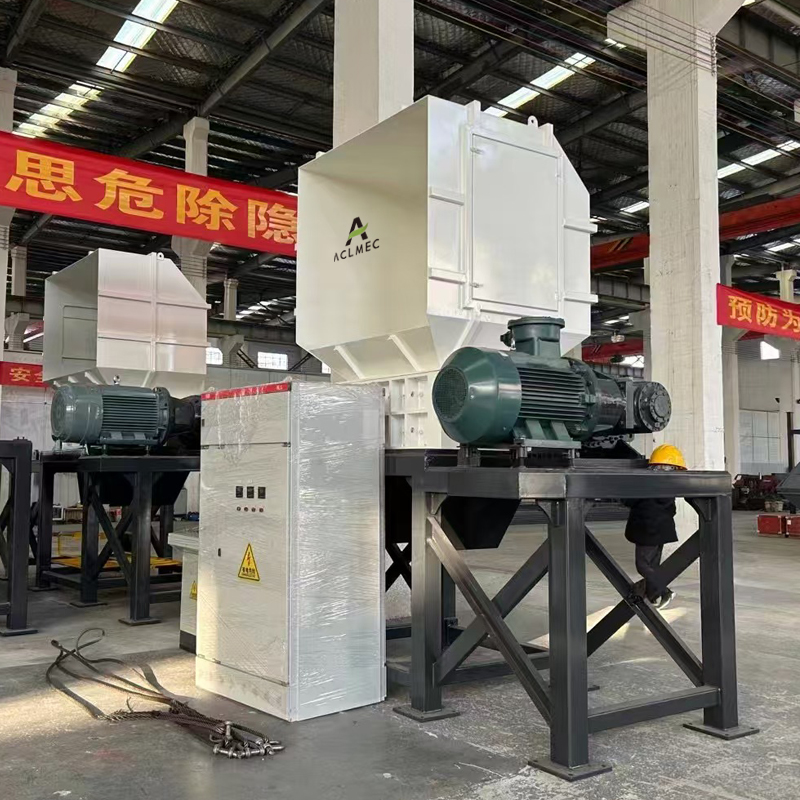

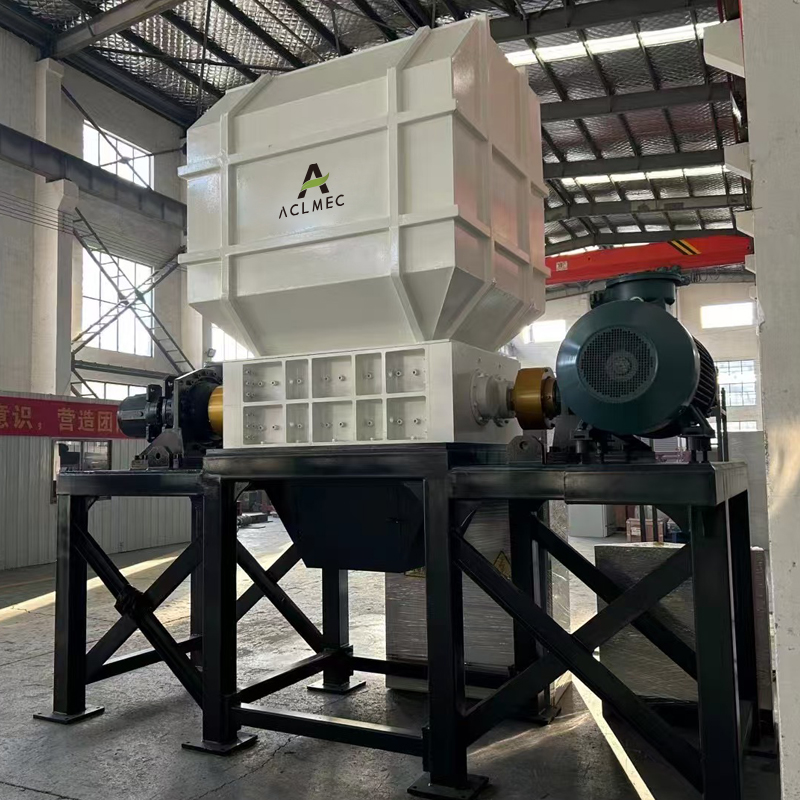

A Double Shaft Shredder for Waste Industrial Garbage（1000Model）is ideal for heavy-duty, large-scale recycling and waste reduction, offering strength, durability, and efficiency.It handles bulky and oversized waste without the need for pre-cutting.Shredding waste industrial garbage , capable of processing is 300kg per hour.
Payment :
LC/DP/TTPackaging Details :
Wooden CaseShipping Port :
ShanghaiLead Time :
10 DaysControl System :
PLC ControlBlade Material :
SKD11,55sicr, 9crsi, 6crw2sApplication :
Multifunctional Waste Material Shredder
Advantage
The advantages of large double shaft shredders are built for higher capacity, larger feed openings, and stronger torque output, making them suitable for the most demanding applications.
• High Capacity
Handles bulky and oversized waste without the need for pre-cutting.
• Strong Cutting Power
Equipped with low-speed, high-torque motors and heavy-duty blades.
• Durability and Reliability
Designed with robust gearboxes, shafts, and wear-resistant cutters for long service life.
The blades have a simple structure for easy maintenance, fit small-space scenarios, target soft materials, cost less, and can be customized based on material properties to optimize crushing results.
With counter-rotating dual shafts meshing, it boasts high efficiency, wide adaptability and stable operation. Its low-speed, high-torque design saves energy, and the modular structure facilitates maintenance.
The motor has strong adaptability, stable operation, reasonable energy consumption and minimal failure impact, balancing shaft force against overload, saving energy at low speeds and reducing production interruption if one fails.
The power unit requires no dual-shaft synchronization, featuring low cost, easy maintenance, and small space occupation. It can directly adjust the load with reasonable energy consumption
Product Parameters
These features ensure excellent performance, which is reflected in the following technical specifications:
| Model | Blade Size(mm) | Quantity(pcs) | Power(kw) | Reducer | Speed(r/min) | dimension(mm) |
| 800 | Φ350*20 | 32 | 22*2 | JZQ650*2 | 12-30 | 3700*1540*2200 |
| 800 | Φ400*40 | 20 | 30*2 | JZQ650*2 | 12-30 | 3700*1540*2200 |
| 1000 | Φ400*30 | 33 | 30*2 | JZQ650*2 | 7-20 | 3860*1550*2350 |
| 1000 | Φ400*40 | 25 | 37*2 | ZSY315 | 7-20 | 4000*1600*2350 |
| 1000 | Φ400*50 | 20 | 45*2 | JQZ850 | 7-20 | 4200*1650*2350 |
| 1200 | Φ400*40 | 30 | 45*2 | ZSY355 | 7-20 | 4600*1900*2450 |
| 1200 | Φ400*50 | 24 | 55*2 | ZSY400 | 7-20 | 4600*1900*2450 |
| 1400 | Φ500*40 | 35 | 55*2 | ZSY400 | 7-18 | 5200*2100*2600 |
| 1400 | Φ550*60 | 23 | 75*2 | ZSY450 | 7-18 | 5300*2200*2600 |
| 1600 | Φ500*40 | 40 | 75*2 | ZSY450 | 7-15 | 5500*2200*2750 |
| 1600 | Φ600*60 | 26 | 90*2 | ZSY500 | 7-15 | 5800*2300*2800 |
| 1800 | Φ650*50 | 36 | 90*2 | ZSY500 | 7-14 | 6000*2400*2950 |
| 1800 | Φ700*60 | 30 | 110*2 | ZSY560 | 7-14 | 6000*2500*3100 |
Application
Large double shaft shredders are ideal for heavy-duty, large-scale recycling and waste reduction, offering strength, durability, and efficiency.
Certifications
FAQ
Q1:Are you a manufacturer or a trading company?
A1:We are the manufacturer. With over 25 years of experience in the recycling processing industry, we focus on providing durable and stable shredders and other recycling tools that meet the needs of various applications, such as waste dealing, plastic granulating, metal processing, wood chipping, and paper recycling.
Q2:What shredder machines do you offer?
A2:We supply single shaft shredders, twin shaft shredders covering metal, plastic, tires, wood/biomass, household waste.
Q3:What's the difference between single shaft shredders and double shaft shredders?
A3:Twin shaft shredders offer high torque and high throughput, ideal for bulky and mixed materials. Single shaft shredders with a pusher are the best choice for films, woven bags and sticky/stringy materials that tend to wrap around blades.
A Industrial Waste Scrap Metal Can Double Shaft Shredder（800Model）is a type of industrial shredding machine designed for heavy-duty material reduction. It uses two parallel shafts equipped with blades (cutters) that rotate slowly and powerfully to tear, shear, and crush bulky materials into smaller, manageable pieces.This double shaft shredder can shred 700-900kg of scrap aluminum cans per hour.
Read More
A Double Shaft Shredder for Waste Industrial Garbage（1000Model）is ideal for heavy-duty, large-scale recycling and waste reduction, offering strength, durability, and efficiency.It handles bulky and oversized waste without the need for pre-cutting.Shredding waste industrial garbage , capable of processing is 300kg per hour.
Read More
A Two Shaft Shredder for Paper Cardboard（1200Model）has two counter-rotating shafts work together, ensuring efficient shearing and minimizing the risk of jamming.Equipped with robust gearboxes, motors, and wear-resistant blades to handle tough materials.This twin shaft shredder can shred paper cardboard at a rate of 1100-1300kg per hour.
Read More
A Plastic Pipe PE Film Two Shaft Shredder（1400Model）is capable of processing large volumes of waste continuously.The plastic shredder reduces noise and dust while providing strong cutting power.The two shaft shredder can shred 1300-1500kg plastic pipe per hour.
Read More
A Industrial Plastic Recycling Dual Shaft Shredder（1600Model）is suitable for many industries: metal recycling, plastics, rubber, wood, e-waste, and municipal waste.Capable of handling heterogeneous materials with varying densities and sizes.This dual shaft shredder can process and shred 1500-1700kg plastic recyclables per hour.
Read More
