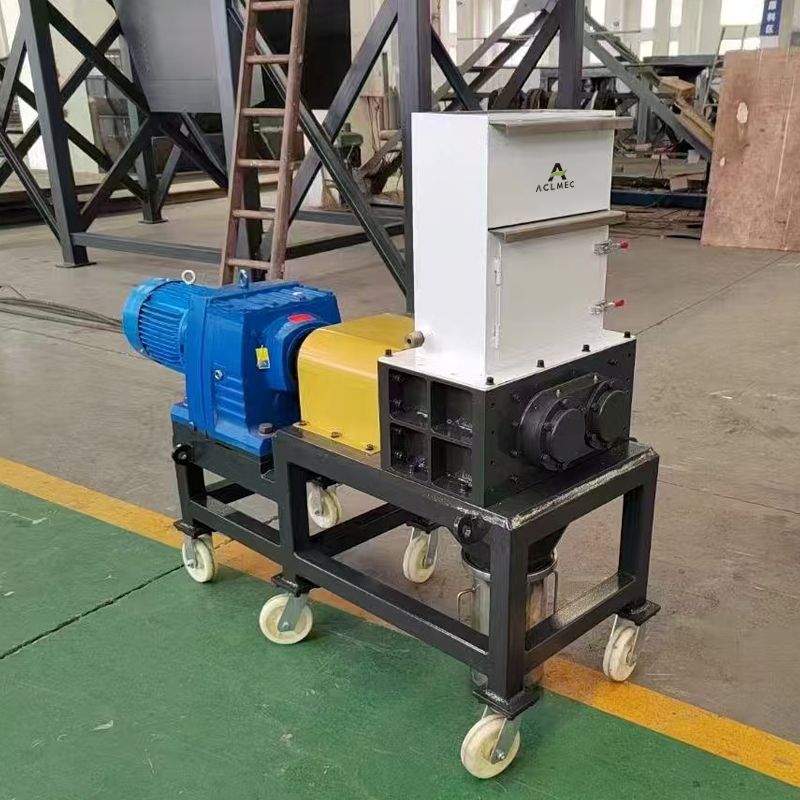

A Portable Small Double Shaft Shredder for Plastic（300Model）is essentially a small twin shaft shredder equipped with a mobility device, allowing the equipment to move flexibly between different work sites. It combines the characteristics of being compact and portable, making it very suitable for users who need to frequently change their work locations.This small double shaft shredder can process and shred 200-400kg plastic per hour.
Payment :
LC/DP/TTPackaging Details :
Wooden CaseShipping Port :
ShanghaiLead Time :
10 DaysControl System :
PLC ControlBlade Material :
SKD11,55sicr, 9crsi, 6crw2siFunction :
Multifunctional Waste Material Shredder
Advantage
The advantages of small double shaft shredders are small size, wide range of uses, low energy consumption, low noise, and easy maintenance, especially suitable for small and medium-sized enterprises and laboratories for waste treatment and recycling.
• Compact structure
Smaller footprint, suitable for limited workshop space.
• Dual Shaft System
Two shafts rotate at low speed but with high torque, ensuring stable operation.
• Low Noise & Dust
Operates relatively quietly compared to high-speed crushers.

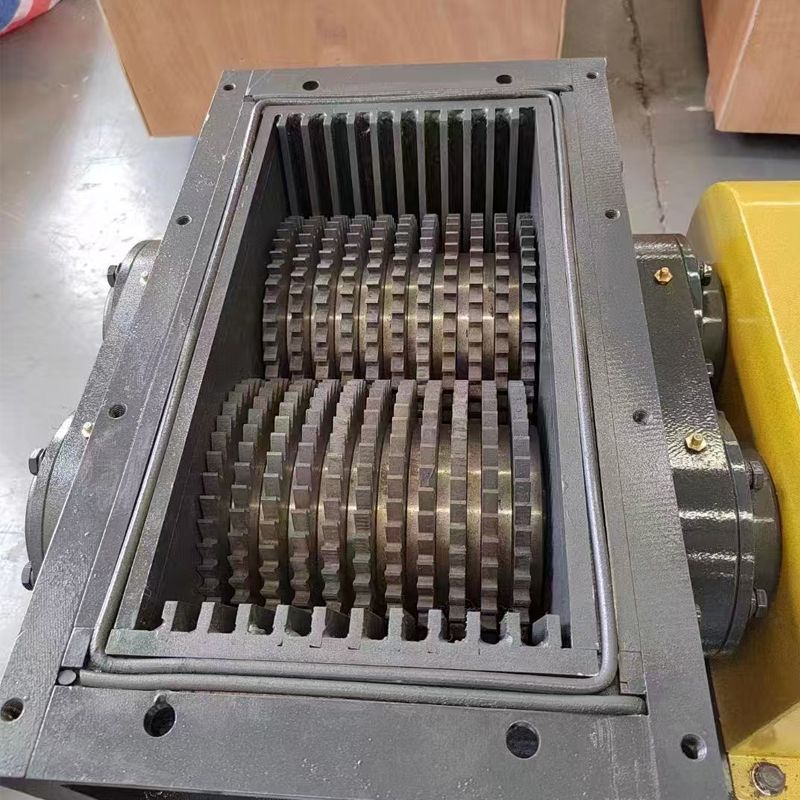

The blades have a simple structure for easy maintenance, fit small-space scenarios, target soft materials, cost less, and can be customized based on material properties to optimize crushing results.
With counter-rotating dual shafts meshing, it boasts high efficiency, wide adaptability and stable operation. Its low-speed, high-torque design saves energy, and the modular structure facilitates maintenance.
The motor has strong adaptability, stable operation, reasonable energy consumption and minimal failure impact, balancing shaft force against overload, saving energy at low speeds and reducing production interruption if one fails.
Product Parameters
These features ensure excellent performance, which is reflected in the following technical specifications:
| Model | D300 | D400 | D500 | D600 |
| Motor | 3KW*1 | 5.5KW*1 | 7.5KW*1 | 11KW*1 |
| Reducer | JK77*1 | 7K87*1 | JK97*1 | JK107*1 |
| Speed | 16/min | 17/min | 15/min | 15/min |
| Torque | 1696Nm | 2176Nm | 4574Nm | 13728Nm |
| Shaft diameter | Φ75 | Φ85 | Φ90 | Φ90 |
| Blade size | Φ180*10 | Φ180*10 | Φ200*20 | Φ200*20 |
| Blade Quantity | 29 | 40 | 24 | 30 |
| Input size | 500*500*300 | 500*600*300 | 600*700*400 | 940*680*500 |
| Over dimension | 800*500*1300 | 1120*600*1480 | 1200*600*1550 | 1550*660*1800 |
| Model | S300 | S400 | S500 | S600 |
| Motor | 3KW*2 | 5.5KW*2 | 7.5KW*2 | 11KW*2 |
| Reducer | JK77*2 | JK87*2 | JK97*2 | JK107*2 |
| Speed | 16r/min | 17r/min | 15r/min | 15r/min |
| Torque | 3107Nm | 3952Nm | 8255Nm | 24960Nm |
| Shaft diameter | Φ75 | Φ85 | Φ90 | Φ90 |
| Blade size | Φ180*10 | Φ180*10 | Φ200*20 | Φ200*20 |
| Blade Quantity | 29 | 40 | 24 | 30 |
| Input size | 500*500*30 | 500*600*300 | 600*700*400 | 940*680*500 |
| Over dimension | 1200*500*1300 | 1400*500*1450 | 1600*600*1550 | 2000*660*1800 |
Application
Small double shaft shredders can process a wide range of materials, including plastics, wood, rubber, paper, and metal. This makes them ideal for industries that have diverse shredding needs.
Certifications
A small double shaft shredder is a small-sized and compact industrial solid waste treatment equipment. It mainly tears, shears and squeezes materials through two counter-rotating low-speed knife shafts, so as to achieve the purposes of volume reduction, crushing and recycling.
